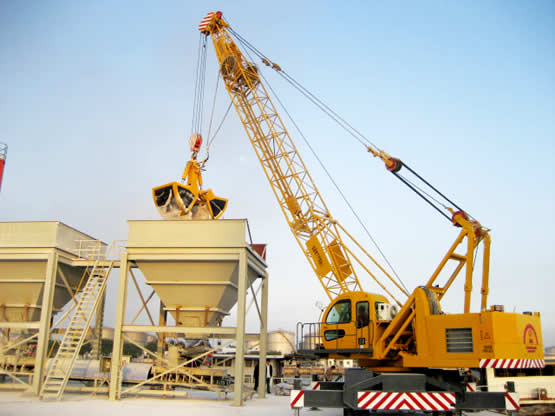

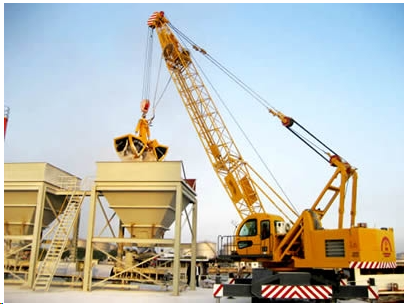

- Model No.:QLYS25HZ
- Max lifting weight :25T
- Total weight:35T
- Max. lifting moment:100t.m
- Max. swing torque:3.6 r/min

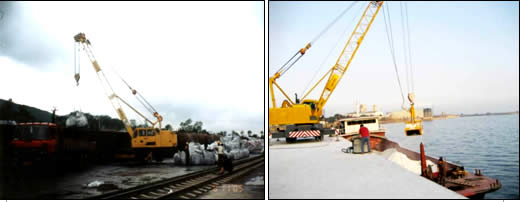

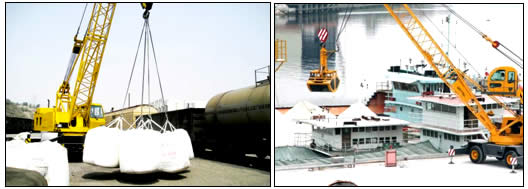

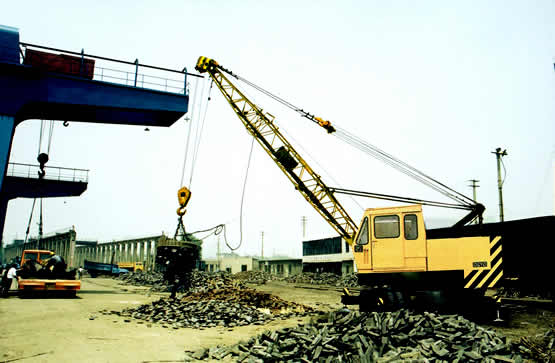

QLYS-25HZ series hydraulic tire type truss boom grab cranes are widely used in ports, wharves, stations and freight yards, and are further developed as high-efficiency bulk cargo handling equipme
QLYS-25HZ series hydraulic tire type truss boom grab cranes are widely used in ports, wharves, stations and freight yards, and are further developed as high-efficiency bulk cargo handling equipment according to the actual operation needs of users. It has the following advantages:
1. Electromechanical hybrid drive patented technology, using 380V electric drive, the operating cost is only 30% of the oil consumption of internal combustion engine, and there is no waste and pollution;
2. It can lift 30% of the lifting operation and travel without outriggers, and the lifting operation and travel can be completed in one cab;

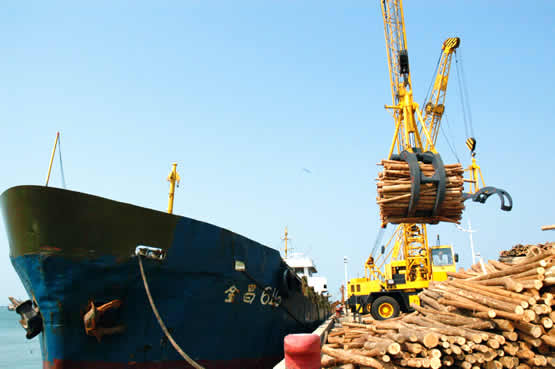

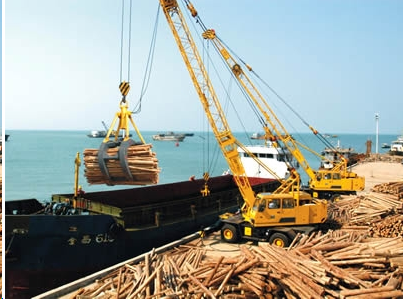

3. After replacing different hydraulic grab, it can load, unload, stack and unstack grass, reed, cotton, hemp, bamboo, wood, waste paper, finished paper, sand, stone, coal and other foam, loose, soft and bulk goods, realizing the multi-purpose function of one machine;
4. The full hydraulic drive realizes stepless speed change, overcomes the operation impact, and makes the operation process more stable, safe, convenient and reliable;
5. The dual pump split and confluence design is adopted to realize the high and low dual speed functions during lifting and lowering operations, which greatly improves the operation efficiency;
6. A slideway type hydraulic automatic pipe winding device is designed to solve the problem of automatic retraction and release of the power output hose when it rises and falls with the grab;
7. Explosion proof motors and fully enclosed electrical appliances and circuits can be selected to ensure safety and fire prevention during operation, meeting the fire and explosion-proof requirements of various key fire safety areas; The control part of the electrical system adopts 24V low-voltage operation. It is designed and installed with protection functions such as overcurrent, overload, overheating and leakage. Phase sequence identification and "Y" - "△" step-down startup are adopted to ensure the safety and reliability of the electrical system;
8. To protect the environment, electric motors are used for operation, which reduces the environmental pollution caused by waste discharge during internal combustion engine operation and reduces the working noise.
To sum up, the crane is the best lifting and handling equipment for working at the fixed places such as stations, ports, storage and transportation warehouses and container terminals. It is especially suitable for stacking and destacking various light, foamy, loose and soft raw materials in the paper-making, cotton and linen industries, textile industries and warehouses of various dangerous and flammable goods, which are key fire prevention industries. It fills the market gap of this product at home and abroad.
major technical parameters
categories | items | unit | date |
lifting performance | rated max. Lifting weight | t | 25 |
rated max lifting moment | kn.m | 1000 | |
working range | min working radius ( basic arm ) | m | 3.5 |
max working radius ( lengthen arm ) | m | 22 | |
max lifting height ( lengthen arm) | m | 24 | |
Elevation range of boom operation | ° | 30°～75° | |
boom length | basic boom length | m | 10 |
standard boom length | m | 18 | |
lengthen boom(optional ) | m | 18～24 | |
weight (18m basic boom ) | total weight (18m boom ) | t | 33 |
front axle load | t | 16 | |
rear axle load | t | 17 | |
walking parameters | max walking speed | Km/h | 15 |
max gradeability | % | 10 | |
min ground clearance | mm | 250 | |
min turning radius | m | 8 | |
approach angle | ° | 12 | |
departure angle | ° | 13 | |
drove mode | / | 4×2 | |
brake distance(15km/h) | m | 6.5 | |
overall dimension | total length( basic arm ) | m | 15 |
total width ( except the barrier of the cab ) | m | 3.1 | |
total height (the variable amplitude bracket drops to the end ) | m | 3.4 | |
lancing leg spacing | vertical spacing | m | 5.6 |
horizontal spacing | m | 5.4 | |
landing leg type | / | H型 | |
distance between wheels | m | 2.4 | |
wheelbase | m | 3.2 | |
operation speed parameter | max single-rope lifting speed | m/min | 110 |
luffing time of boom （30°～75°） | s | 26 | |
max swing speed | r/min | 4.0 | |
power parameters | engine power | Kw | 110 |
motor power | Kw | 75 | |
accessory parameters
| The parameters of hydraulic grippers or electromagnetic suction cups and other accessories are determined according to the actual needs of users and equipment performance. | ||
Notes: 1. The speed parameters in the table are all the speed parameters when the engine is driven, and the speed will be slightly different when the motor is driven;
2. The actual performance of the equipment may be slightly different from the above parameters due to specific configuration changes;
3. The equipment is equipped with torque limiter as standard, and can be equipped with the following optional devices: single or dual power drive system, extended arm (shortened arm)
Hydraulic gripper, electromagnetic chuck, lifting cab, solid tire, automatic centralized lubrication system, four-wheel steering or drive system, etc. (the price of optional device is calculated separately.)

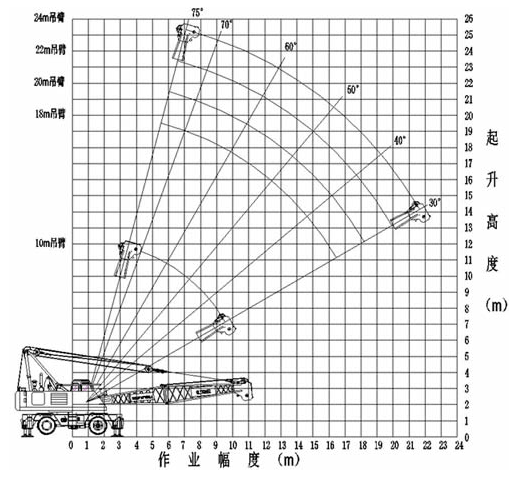

working range :
